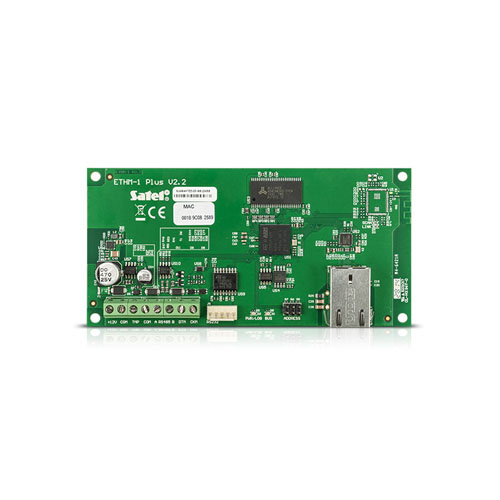

ETHM-1 Plus, TCP / IP communication module, Satel

supported by the control panels of INTEGRA, INTEGRA Plus and VERSA families
TCP/IP or UDP reporting
possibility of cooperation with the ETHM-1 Plus Ethernet module (ETHM-1 Plus version 2.05 or higher):
Dual Path Reporting, compliant with EN 50136
backup communication path
remote programming via DLOADX program
INTEGRA system supervision via GUARDX program
system operation from WWW browser level
ability to operate the system from a mobile phone using the applications: INTEGRA CONTROL, VERSA CONTROL
event notification capability using e-mail messages (only INTEGRA Plus*, VERSA)
encrypted data transmission
support for DHCP automatic address configuration
open protocol for systems integration via the TCP/IP channel

Supply voltage: 12 V DC
Operating temperature range: -10...+55 °C
Standby mode current consumption: 70 mA
Max. current consumption: 80 mA
Weight: 64 g
Maximum humidity: 93±3%
Dimensions: 68 x 140 mm
Environmental class according to EN50130-5; II
