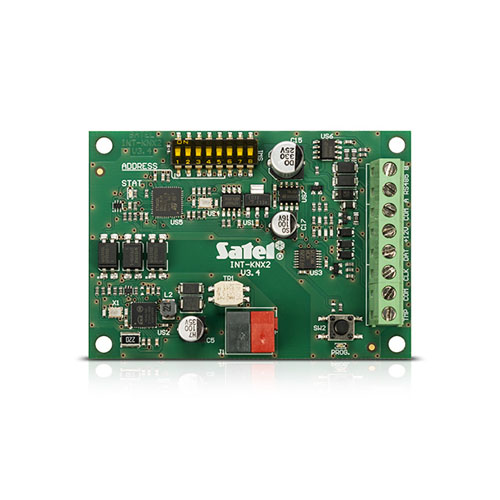

INT KNX-2, KNX communication module for integration with Satel

control of KNX actuators using INTEGRA system
receiving information from KNX system via INTEGRA control panel (v1.13 of 2015-03-14 or newer)
direct connection to the KNX bus
configuration of the module using DLOADX program (v1.13.007 or newer)
electronics designed to meet the requirements of standards for KNX system devices

Supply voltage: 12 V DC
Operating temperature range: -10 °C...+55 °C
Standby mode current consumption: 43 mA
Max. current consumption: 50 mA
Weight: 32 g
Maximum humidity: 93±3%
Dimensions: 80 x 57 mm
Environmental class according to EN50130-5: II
SATEL
