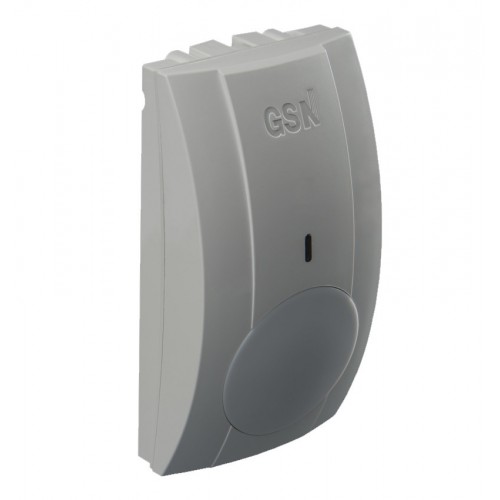

IR beam motion detector Patrol-203 PET

IR beam motion detector with dual red sensor, PET function.

Model: Patrol 203 PET
Power supply voltage:                                                 8.5-16VDC
Standby power consumption:                                   12mA
Current consumption in alarm mode:                     16.5mА
Preparation time:                                                         60sec
Detection zone:                                                            15.6m x 120º
Detection speed:                                                          0.3 - 3m / sec
Relay output:                                                                NC; 60V; 100mA; 16Ω
Tamper output:                                                            NC; 10Ω
Alarm time:                                                                    3sec
Reset Time:                                                                    5 ± 1sec
PET mode:                                                                     10/20kg
Installation height:                                                       2.0 - 2.5m
Light resistance without sunlight filter:                    less than 6500 Lux
Light resistance with sunlight filter:                          over 30,000 Lux
Operating temperature range:                                  - 30ºC + 60ºC
Storage temperature range:                                      - 50ºC + 80ºC
RFI Resistance:                                                               30V / m at a frequency range of 30MHz-1GH
EMI Resistance:                                                              50,000V
Dimensions:                                                                    54mm x 33mm x 99mm
Weight:                                                                             75gr
