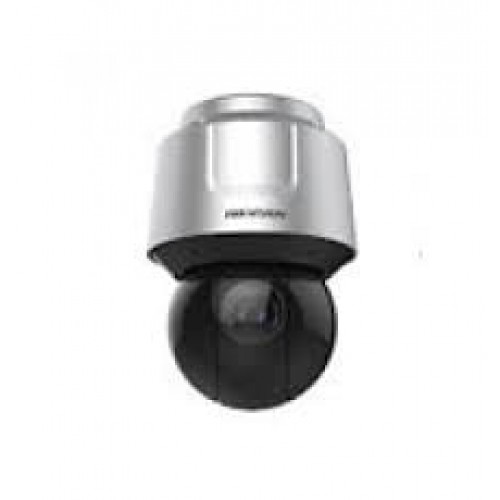

Hikvision PTZ DS-2DF8A442IXG1-EL
Hikvision PTZ DS-2DF8A442IXG1-EL
Kaina:
Be PVM2,378.71€
Su PVM : 2,878.24€
- Sandėlyje: Yra
- Prekės kodas: KIPDS2DF8A442IXG1EL
- Patvirtinimai
- Apsauga nuo korozijosNo
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019);KC (KN 32: 2015, KN 35: 2015)
- AplinkosaugaCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ApsaugaIP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10
- SaugumasCB (IEC 62368-1:2014+A11);CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
- Garsas
- Garso bitų dažnis64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)
- Garso glaudinimasG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
- Garso atrankos dažnisMP2L2: 16kHz, 32kHz, 48kHzAAC-LC: 16kHz, 32kHz, 48kHzPCM: 8kHz, 16kHz, 32kHz, 48kHzMP3: 8kHz, 16KHz, 32KHz, 48KHz
- Pašalinių garsų šalinimasYes
- Kamera
- Diena&NaktisIR cut filter
- Vaizdo jutiklis1/1.8" progressive scan CMOS
- Didžiausia raiška2688 × 1520
- Minimalus apšvietimasColor: 0.0003 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2，AGC ON), 0 Lux with IR
- Užrakto greitis1/1 s to 1/30,000 s
- Lėtas užraktasYes
- Priartinimas42x optical, 16x digital
- Išmaniosios funkcijos
- Veido atpažinimasDetects up to 30 faces simultaneously,Uploads face with background and closed-up face pictures,Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
- Face ComparisonUp to 10 face libraries. 30000 faces for each library. 150000 faces in total,Recognizes face identity via face modeling, grading and comparing to those in face library,Supports face library encryption
- Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle,Gets 7 face features, 14 human body features and 8 vehicle features
- Perimetro apsaugaLine crossing detection, region entrance detection, intrusion detection, region exiting detection
- Kelių eismo ir transporto priemonių aptikimasSmart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate ≥98%Capture rate ≥99%Driving direction accuracy rate ≥98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
- Funkcijos
- Pagrindinės funkcijosMotion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output,vandal-proof alam,audio exception detection,unattended baggage detection, object removal detection
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,and PTZ actions (such as preset, patrol scan, pattern scan)
- Bendrieji duomenys
- De-icingNo
- Rasos šalinimasYes
- Matmenys⌀ 267 mm × 405 mm (⌀ 10.51" × 15.94")
- Pagrindinės funkcijosMirror, password protection, watermark, IP address filter
- ŠildytuvasYes
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Darbo sąlygosTemperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95%
- Galia36 VDC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
- Vandal-proof AlarmNo
- SvorisApprox. 8.5 kg (18.74 lb.)
- WiperNo
- Apšvietimas
- Išmanus papildomas apšvietimasYes
- Papildomo apšvietimo diapazonasIR Distance: up to 500 m
- Papildomo apšviešimo tipasIR
- Nuotrauka
- Dienos/nakties perjungiklisDay, night, auto, scheduled-switch
- Rūko šalinimasOptical defog
- Nuotraukų pagražinimasBLC, HLC, 3D DNR
- Nuotraukos parametrų keitiklisYes
- Vaizdo nustatymaiSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Vaizdo stabilizavimasYes. Built-in gyroscope to improve EIS performance.
- Privatumo kaukėUp to 24 masks, polygon region, mosaic mask, mask color configurable
- Regioninė ekspozicijaYes
- Regioninis fokusavimasYes
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)150 dB WDR
- Sąsaja
- Signalizacija7 inputs, 2 outputs
- Garsas1 input (line in), max. input amplitude: 0-3.3Vpp, input impedance: 4.7KΩ±5%; 1 output (line out), line level, output impedance: 600 Ω
- Interneto sąsaja1 RJ45 10M/100M self-adaptive Ethernet port
- Saugyklos vietaBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 1 TB
- RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
- PerkrovimasYes
- Vaizdo išvestis1.0V[p-p]/75Ω, PAL, NTSC, BNC connector
- Objektyvas
- DiafragmaMax. F1.2
- FOVHorizontal field of view: 56.6° to 1.7° (wide-tele),Vertical field of view: 33.7° to 0.9° (wide-tele),Diagonal field of view: 63.4° to 1.9° (wide-tele)
- Židinio nuotolis6.0 mm to 252 mm, 42× Optical
- FokusavimasAuto, semi-auto, manual, rapid focus
- Priartinimo greitisApprox. 4.5 s
- Linkage and Tracking
- Object TrackingSupport person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded.
- Išmanus sekimasManual tracking, auto-tracking 3.0
- Tinklas
- APIISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M)，OTAP
- KlientasHikCentral, iVMS-4200, Hik-Connect
- Vidinė atmintisNAS (NFS, SMB/ CIFS), ANR
- ProtokolaiIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
- SaugumasPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address),TPM 2.0 (FIPS 140-2 level 2)
- Tiesioginis vaizdo žiūrėjimasUp to 20 channels
- Sklandus srautasYes
- Naudotojas/prievadasUp to 32 users. 3 levels: Administrator, Operator and User
- NaršyklėIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+
- PTZ
- 3D pozicijaYes
- Movement Range (Pan)360°，Smart Pan-Tilt Correction
- Movement Range (Tilt)-20° to 90° (auto flip)，Smart Pan-Tilt Correction
- PTZ būsenos vaizdavimasYes
- Pan greitisPan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s
- Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
- Patruliavimas8 patrols, up to 32 presets for each patrol
- Išsaugotų rėžimų skenavimas4 pattern scans, record time over 10 minutes for each scan
- Išjungimo atmintisYes
- Išsaugotų nustatymų sustabdymasYes
- Iš anksto išsaugoti nustatymai300
- Proporcingas PanYes
- Užduočių grafikasPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Tilt greitisTilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
- Supplement Detection
- CompassNo
- GyroscopeYes
- Satellite PositioningNo
- Vaizdas
- H.264 tipasBaseline Profile/Main Profile/High Profile
- H.265 tipasMain Profile
- Pagrindinis srautas50 Hz：50 fps (2688 × 1520, 2560 × 1440), 100 fps (1920 × 1080, 1280 × 960, 1280 × 720);60 Hz：60 fps (2688 × 1520, 2560 × 1440), 120 fps (1920 × 1080, 1280 × 960, 1280 × 720)*High frame rate is supported under monitoring mode only.
- Region of Interest (ROI)8 fixed regions for each stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Antrinis srautas50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Tikslinis apkarpymasNo
- Trečias srautas50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Vaizdo bitų dažnis32 Kbps to 16384 Kbps
- Vaizdo glaudinimasMain stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264/MJPEG
