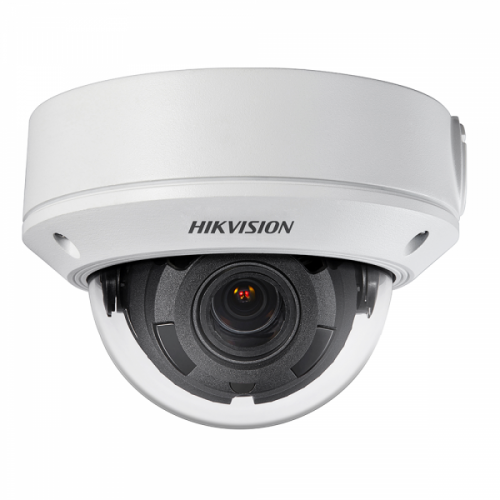

Hikvision dome DS-2CD1743G0-IZ F2.8-12 (balta, 4 MP, 30 m. IR, EXIR)

Sensorius

1/3" progressive scan CMOS

Min. apšvietimas

Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)

Užrakto laikas

1/3 s to 1/100, 000 s, support slow shutter

Objektyvas

2.8 to 12 mm, Horizontal field of view: 98°to 28° Vertical field of view: 51°to 16° Diagonal field of view: 115°to 32°

Fokusavimas

Auto

Objektyvo montavimas

φ14

Reguliavimas

Pan: 0° to 355°, tilt: 0°to 70°, rotation: 0° to 360°

Diena / naktis

IR cut filter

Platus dinaminis diapazonas

120 dB

Skaitmeninis triukšmo slopinimas

3D DNR

Vaizdo suspaudimas

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

H.264 tipas

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 tipas

Main Profile

H.265+

Main stream supports

Vaizdo sparta

32 Kbps to 8 Mbps

Maks. vaizdo raiška

2560 × 1440

Pagrindinio srauto kadrai per sek.

50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Antrinio srauto kadrai per sek.

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Vaizdo nustatymai

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Dienos/nakties perjungimas

Auto, scheduled

Tinklinis talpinimas

Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR

Pavojaus signalo sukėlimas

Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login

Protokolai

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Pagrindinės funkcijos

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Ryšio sąsaja

1 RJ45 10M/100M self-adaptive Ethernet port

Vaizdo išvestis

1Vp-p composite output (75 Ω/BNC)(Without-Z)

Reset mygtukas

Yes

Veikimo sąlygos

-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Maitinimas

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Energijos suvartojimas

12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W

Smūgio apsauga

IK10

IP apsaugos klasė

IP67

IR apšvietimas

Up to 30 m

Išmatavimai

Camera: Φ 141 mm × 99.9 mm (5.6" × 3.9")

With package: 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")

Svoris

Camera: approx. 820 g (1.8 lb.)

With package: approx. 1200 g (2.6 lb.)
