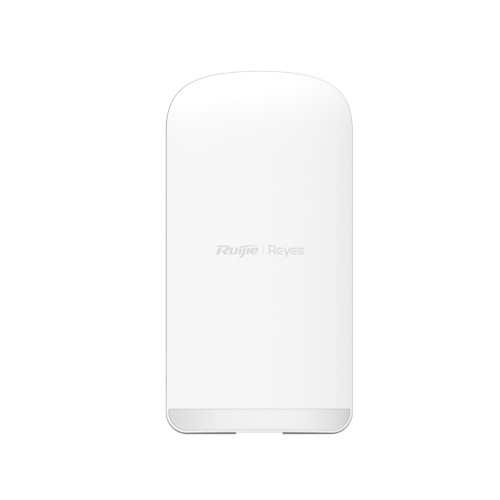

Belaidis LAN perdavimas (Bridge) Ruijie RG-EST330F-P (2,4 GHz / 5 GHz, 3km, 1 vnt.)
Naujiena
Belaidis LAN perdavimas (Bridge) Ruijie RG-EST330F-P (2,4 GHz / 5 GHz, 3km, 1 vnt.)
Kaina:
76.94€
Su PVM93.10€
- Sandėlyje: Yra
- Prekės kodas: RUIJIERGEST330FP
- Bendrieji duomenys
- ModelisRG-EST330F-P
- Produkto tipasBridge
- Applicable ScenariosCCTV
- Radio designDual-radio, 3 spatial streams (2.4 GHz: 1 x 1, SISO; 5 GHz: 2 x 2, MIMO)
- Operating band2.4 GHz: 2.400–2.483 GHz, 5 GHz: 5.150–5.850 GHz (varies by region)
- Wi-Fi standartasWi-Fi 5 (802.11ac), backward compatible with 802.11a/b/g/n
- Kanalo plotis2.4 GHz: Auto/20/40 MHz; 5 GHz: Auto/20/40/80 MHz
- Maximum transmission rate1166 Mbps (2.4 GHz: 300 Mbps, 5 GHz: 866 Mbps)
- Maximum transmit power2.4 GHz: 20 dBm; 5 GHz: 29 dBm (per link: 26 dBm)
- Receive sensitivity802.11b: -91 dBm to -85 dBm; 802.11a/g: -89 dBm to -71 dBm; 802.11n: -83 dBm to -65 dBm; 802.11ac HT20/40/80: -83 to -51 dBm
- Moduliacija802.11b/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- Antenna (2.4 GHz)1 x 1 built-in omnidirectional antenna, gain: 2 dBi
- Antenna (5 GHz)2 x 2 built-in directional antenna, gain: 13 dBi, H/V orientation: 30°
- ProcesoriusSingle-core, 575/580 MHz
- AtmintisFlash: 16 MB, RAM: 64 MB DDR2
- Svoris0.37 kg (0.82 lbs)
- Shipping weight0.91 kg (2.01 lbs)
- Produkto matmenys240 x 133 x 71 mm (9.45 x 5.24 x 2.80 in.) excluding mounting bracket
- Package dimensions276 x 165 x 107 mm (10.87 x 6.50 x 4.21 in.)
- SpalvaElegant white
- LAN ports3 x 10/100BASE-T
- Atstatymo mygtukas1
- LED indikatoriai1 x System Status, 3 x Ethernet Port, 3 x Signal Status
- Power supply methodsDC Adapter, Passive PoE Injector, 802.3af/at
- Power input (adapter)100–240 V AC, 50/60 Hz, 1 A max.; Output: 24 V DC, 1.5 A
- Power input (passive PoE)24 V DC, 1.5 A input/output
- Local power supplyYes, 12 V DC, 1 A via connector (Ø 5.5 mm/2.1 mm, depth 9 mm)
- PoE įvestis1 x PoE In, 1 x PoE/PoE+ In
- PoE išvestis2 x PoE Out ports (IEEE 802.3af/at or 24 V DC non-standard), 15.4 W total budget
- Maks. energijos sąnaudos9 W (without PoE Out), 24.4 W (with PoE Out)
- Montavimo galimybėsWall / Pole
- Darbinė temperatūra–30°C to +55°C (–22ºF to +131ºF)
- Laikymo temperatūra–40°C to +85°C (–40ºF to +185ºF)
- Drėgmė5–95% RH non-condensing (operating & storage)
- Aukštis–500 m to +5000 m (–1640.42 to +16404.20 ft)
- MTBF400,000 hours (approx. 45 years)
- AušinimasNatural cooling
- IP klasėIP55
- ESD apsaugaContact: ±8 kV, Air: ±15 kV (Class B)
- Apsauga nuo viršįtampiųService port: ±4 kV; Power connector: ±4 kV common mode, ±2 kV differential mode
- SaugumasEN62368-1
- EMC standardsEN 55032, EN 55035, EN 61000-3-2/3-3, EN 301489-1/3/17
- SertifikavimasCE, CB
- WLAN featuresBaseStation/CPE mode, TDMA, SSID hiding, WPA2-PSK, bridge speed test, WMM, up to 16 PTMP connections, 3 km bridge distance
- Bridge performanceHT40: 90 Mbps @ 0.5 km, 80 Mbps @ 1 km, 60 Mbps @ 2 km, 40 Mbps @ 3 km
- Signal strength RSSI-53 dBm @ 0.5 km, -59 dBm @ 1 km, -65 dBm @ 2 km, -70 dBm @ 3 km
- Recommended camera loadUp to 18 (3 Mbps) or 5 (7–8 Mbps) depending on distance
- PairingOne-touch pairing, 20 m effective distance
- SON features200 device max, optimal signal, standby channel, active recovery
- ValdymaseWeb login, local upgrade, config backup, language: EN/Chinese, time settings
- Switching features10/100 Mbps auto-negotiation, VLAN
- IP servicesIPv4 ping/traceroute, DHCP client/server
- SaugumasStorm control
- Debesijos funkcijosSON, Ruijie Cloud management, SSID config, fault diagnosis, AI heatmap
- Pakuotės turinysDevice x1, Cable tie x4, 24 V/1.5 A Adapter x1, PoE Injector x1, Mounting Template x1, Screws x4, User Manual x1, Warranty Card x1
