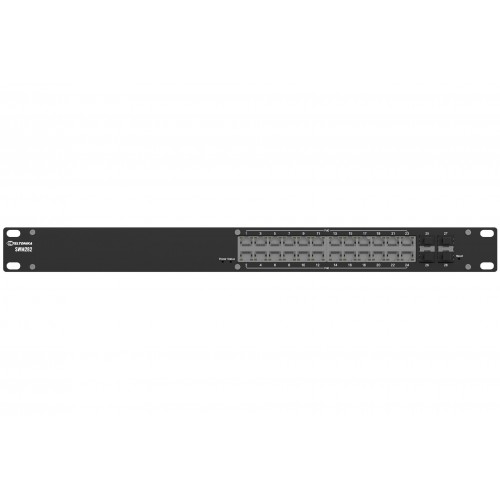

24 prievadų valdomas komutatorius Teltonika SWM282
24 prievadų valdomas komutatorius Teltonika SWM282
Kaina:
Be PVM318.64€
Su PVM : 385.56€
- Sandėlyje: Yra
- Prekės kodas: SWITCHTELTSWM282
- Bendrieji duomenys
- Produkto pavadinimasTeltonika SWM282
- TipasLayer 2+ Managed Industrial Ethernet Switch
- Ethernet prievadai24 × RJ45, 10/100/1000 Mbps, auto MDI/MDIX
- Fiber ports4 × SFP
- PoE+ supportPorts 1–24, IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W), Alternative A
- Bendra PoE galia300 W
- CPURealtek, single core, 500 MHz, MIPS-4KEc
- RAM128 MB DDR3
- Atmintis16 MB flash
- Operacinė sistemaTSWOS (OpenWrt-based Linux OS)
- NašumasNon-blocking bandwidth 56 Gbps, forwarding rate 83.33 Mpps
- MAC adresų skaičius8,000 entries
- Paketų buferis512 KB
- Jumbo frame palaikymasUp to 10,000 bytes
- Industrial protocolsProfinet Class B (optional), EtherNet/IP, SNMP v2/v3, LLDP
- Network features802.1Q VLAN, 802.1p CoS, 802.1x access control, STP/RSTP, loop protection, DHCP server/client, dynamic routing (BGP, OSPF v2, RIP, EIGRP), static IPv4/IPv6 routing
- QoS featuresPort/DSCP/802.1p/TOS priority, rate limiting, storm control, port-based traffic shaping, scheduling (SP/WFQ/WRR)
- SaugumasPort-based access control, MAC filtering, Radius/TACACS+, IP login block, PAM preshared key authentication
- DiagnosticsCable diagnostic, ping, traceroute, nslookup, PoE reboot on specific port
- APITeltonika Web API (beta) for integration and automation
- Maitinimo įvestisAC 100–240 V, 50/60 Hz (C14 connector)
- Energijos suvartojimasIdle 9 W / Max 330 W / PoE max 300 W
- Korpuso medžiagaAnodized aluminum housing and panels
- Matmenys483 × 44 × 234 mm
- Svoris2.291 kg
- MontavimasRack mounting kit
- Darbo temperatūra0 °C to +50 °C
- Darbo drėgmė10–90% non-condensing
- Ingress protectionIP30
- Būsenos LED indikatoriai1 × Power, 24 × PoE/ETH activity, 4 × SFP, 1 × Status
- SertifikataiCE, UKCA, CB, RCM, FCC, IC
- KomplektacijaSWM282 switch, Quick Start Guide, packaging box (Profinet option available as SWM282000001)
