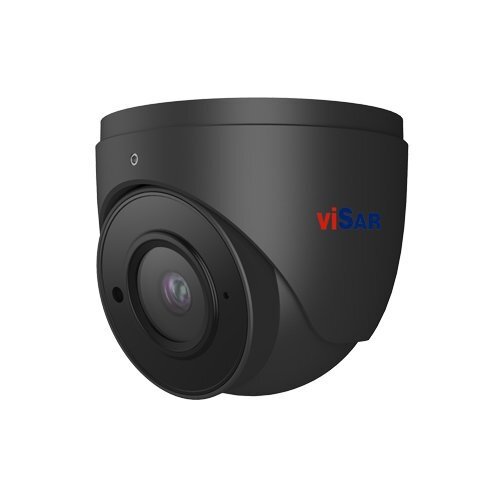

VSC IPT5BLC1F28D IP video camera 5MP, 2.8mm, LED30, Full-color, object classification AI, Black

Camera
Image Sensor: 1 / 2.7" CMOS
Image Size: 2592 × 1944
Electronic Shutter: 1s ~ 1 / 100000 s
Iris Type: Fixed Iris
Min. Illumination: 0 lux (LED ON)
S/N Ratio: ?50dB
Lens: 2.8 mm@F1.0, horizontal FoV: 94.8°; vertical FoV: 78.4°; diagonal FoV:107.3°
Focus: Fixed
Lens Mount: M12
Wide Dynamic Range: 120dB
BLC: Yes
HLC Yes
Defog: Yes
Digital NR: 3D DNR
Angle Adjustment: Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°
Main stream: H.265+ / H.265 / H.264+ / H.264
Video Compression:
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard: Baseline Profile/Main Profile/High Profile
Resolution: 5MP (2592×1944 ), 4MP (2592×1520), 2K (2560×1440), 3MP(2304×1296 ),1080P (1920×1080), 720P (1280×720 ), D1, CIF, 480×240
Main Stream: 5MP/4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Sub Stream: 720P/D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Third Stream: D1/CIF/480×240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
Bit Rate: 64 Kbps ~ 8 Mbps
Bit Rate Type: VBR / CBR
Audio Compression: G711A / U
Image Settings: ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser
ROI: Each ROI to be configured separately
Interfaces
Network: RJ45
Video Output: No
Audio: 1CH audio input; 1 CH built-in MIC
Storage: Built-in micro SD card slot; up to 256GB
Reset: Yes
Alarm: No
Intelligent Analytics (Smart Events)
Perimeter Protection: Line crossing, intrusion (human/motor vehicle/non-motor vehicle classification)
Target Counting: Line crossing human/motor vehicle/non-motor vehicle counting
Exception Detection: Scene change, video blur and video color cast detection
Face Detection: Face detection and face capture
DORI Distance
Lens Detect Observe Recognize Identify
2.8mm 70.72m(232.02ft) 28.29m(92.81ft) 14.14m(46.39ft) 7.07m(23.19ft)
Functions
Remote Monitoring: Web browsing, CMS remote control
Online Connection: Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol: UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
Interface Protocol: ONVIF
Storage: Network remote storage; micro SD card storage
Smart Alarm: Motion detection, SD card error, SD card full
General Function: Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern
PoE: Yes, IEEE802.3af
White Light Range: 20~30 m
Ingress Protection: IP67
Others
Power Supply: DC12V/PoE
Power Consumption: < 7W
Storage Conditions: - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)
Operating Conditions: - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm ): Ø 94.6 × 82.8
Weight ( net ): Approx. 0.46KG
Installation: Ceiling mounting; Wall mounting
Junction box: VSB IPT12
Certificate: CE, FCC
Environmental Protection:Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
