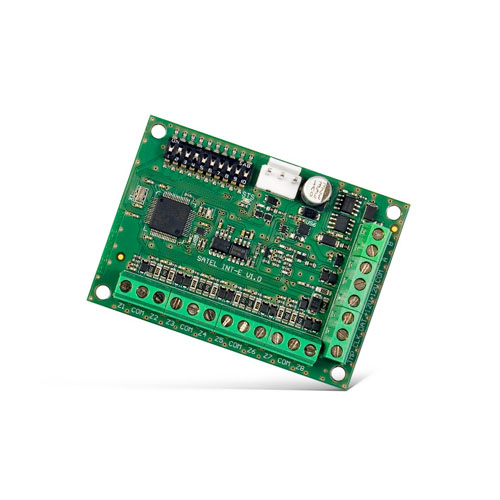

INT-E, 8-zone expansion module

system expansion with 8 zones
support for:
NO, NC
EOL, 2EOL/NO, 2EOL/NC (alarm control panels only)
3EOL (INTEGRA Plus only)
programmable EOL resistance value (INTEGRA, INTEGRA Plus, VERSA, VERSA Plus only)
support for vibration and roller shutter detectors (alarm control panels only)
ability to connect to RS-485 bus (firmware update via the bus)

Supply voltage: 12 V DC
Operating temperature range: -10 °C...+55 °C
Standby mode current consumption; 35 mA
Max. current consumption: 80 mA
Weight: 47 g
Maximum humidity: 93±3%
Dimensions: 80 x 57 mm
Environmental class according to EN50130-5: II
+12 V output rating: 2,5 A / 12 V DC
Security grade acc. to EN 50131 (without power supply): Grade 3
Security grade acc. to EN 50131 (with APS-412 power supply): Grade 2
SATEL
