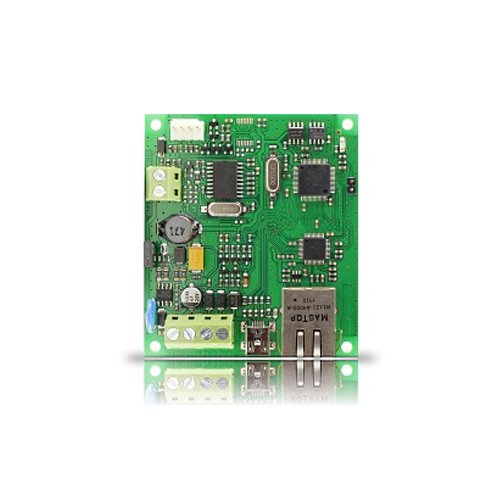

LAN800 TCP/IP module for reporting to CSP (SECOLINK)

Network support: Ethernet 10/100 Base T
Data BUS protocol: KRBUS
Reporting to security companies protocol: CID via Ethernet
Maximum cable distance between panel and module: 300m
Upload/Download protocol: TCP/IP via LAN
connection check (HeartBeat): Periodic message to security companies from 5 sec..
IP adress: Static or dynamic (DHCP)
DTMF conversion from PSTN to Ethernet: Yes (one-way)
Power voltage (DC): 9-14V
Used current: 60 mA
Dimensions: 67mm x 77mm
Environmental compliance: ROHS
Working temperature: -10?C ~ +50?C
Communicator setting programming interface: USB N
