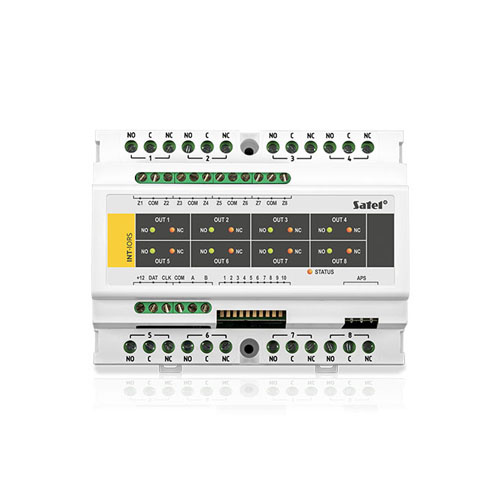

INT-IORS, Input / output expansion module

8 relay outputs for direct control of 230 V mains powered appliances
8 programmable zones
installation directly on 35 mm DIN rail
optical indicators of relay state
cooperation with ACCO NET system (since 1.4 release)

Environmental class according to EN50130-5: II
Max. number of inputs(zones): 8
Max. number of outputs: 8
Maximum humidity: 93±3%
Max. current consumption: 350 mA
Supply voltage: 12 V DC
Weight: 300 g
Relay outputs rating (resistive load): 16 A / 230 V AC
+12 V output rating: 2,5 A / 12 V DC
Standby mode current consumption: 35 mA
Dimensions: 122 x 93 x 58 mm
Occupied number of 17.5 mm modules: 7
Operating temperature range: -10…+55 °C
SATEL
