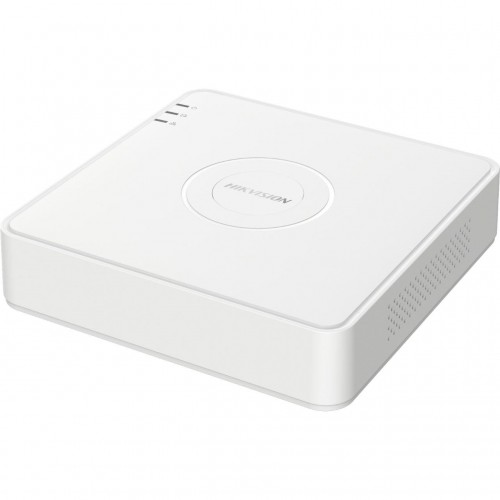

Hikvision iDS-7104HQHI-M1/S(E)

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

When 1080p Lite mode is not enabled:

4 MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF

Main stream:

When 1080p Lite mode is not enabled:

For 4 MP stream access:

4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

For 3 MP stream access:

3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

For 1080p stream access:

1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25fps (P)/30 fps (N)

For 720p stream access:

720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

When 1080p Lite mode is enabled:

4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

1-ch (up to 5-ch)

Enhanced IP mode on:

2-ch (up to 6-ch), each up to 4 Mbps

Up to 6 MP >rezoliucija

Support H.265+/H.265/H.264+/H.264 IP cameras

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

*: The 3 MP signal input is only available for channel 1.

1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable
