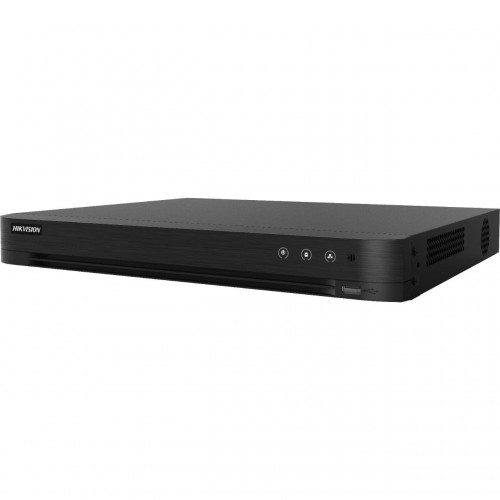

Hikvision DVR iDS-7204HUHI-M2/S(C)

Main stream:

8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

2-ch (up to 6-ch)

Up to 8 MP >rezoliucija

Enhanced IP mode on:

4-ch (up to 8-ch), each up to 4 Mbps

Up to 8 MP >rezoliucija

;Support H.265+/H.265/H.264+/H.264 IP cameras

HDMI:

1-ch, 2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

VGA:

1-ch, 1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous išvestis

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

Front panel: 1 × USB 2.0

Rear panel: 1 × USB 2.0
