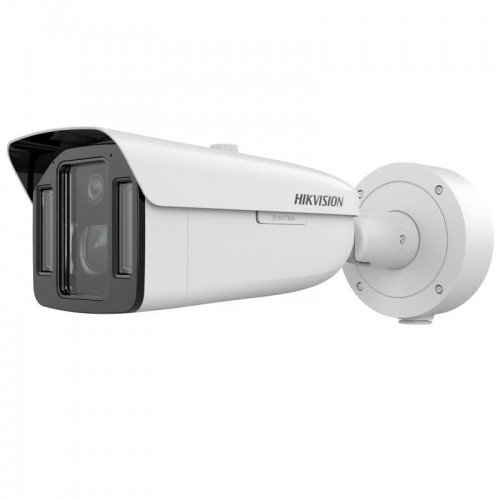

Hikvision iDS-2CD8A48G2-XZHSY F15-45/F4 (balta, 4MP, ColorVu, IR+LED 100m/30m, LPR)
Naujiena
Hikvision iDS-2CD8A48G2-XZHSY F15-45/F4 (balta, 4MP, ColorVu, IR+LED 100m/30m, LPR)
Kaina:
Be PVM1,017.84€
Su PVM: 1,231.59€
- Sandėlyje: Yra
- Prekės kodas: KIP2CD8A48G2XZHSY
- Patvirtinimai
- Apsauga nuo korozijos-Y model: NEMA 4X (NEMA 250-2018)
- AutomatikaEN50121-4
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
- AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- KitaPVC FREE
- ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
- SaugumasUL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1
- Garsas
- Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
- Garso tipasMono sound
- Pašalinių garsų šalinimasYes
- Camera
- Kampo keitimasPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
- Diena&NaktisBlue glass module (less ghost phenomenon)
- Vaizdo jutiklisChannel 1: 1/1.8" Progressive Scan CMOS,Channel 2: 1/1.8" Progressive Scan CMOS
- Maks. rezoliucijaChannel 1: 2560 × 1440, channel 2: 2560 × 1440
- Min. apšvietimasChannel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR,Channel 2: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR
- Užrakto greitis1 s to 1/100,000 s
- DORI
- DORIChannel 1:Wide: D: 210.8 m, O: 83.6 m, R: 42.2 m, I: 21.1 mTele: D: 616.6 m, O: 244.7 m, R: 123.3 m, I: 61.7 mChannel 2:D: 75.7 m, O: 30.5 m, R: 15.1 m, I: 7.6 m
- Išmaniosios funkcijos
- Veido atpažinimasChannel 1,Detects up to 120 faces simultaneously,Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,Uploads face with background and closed-up face pictures
- Face ComparisonChannel 1,Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total. ,Recognizes face identity via face modeling, grading and comparing to those in face library,Supports face library encryption
- Multi-target-type DetectionChannel 1,Detects up to 60 targets simultaneously,Supports simultaneous detection and capture of human body, face, motor vehicle, non-motor vehicle,Gets 7 face features,Gets 13 human body features,Gets 2 vehicle features,Supports license plate recognition
- Perimeter Protection Channel 1,Line crossing, intrusion, region entrance, region exiting,Support alarm triggering by specified target types (human and vehicle),
- Queue ManagementSupports up to 8 detection regions, and independent arming schedule and linkage methodSupports 2 detection modes: regional people queuing-up, waiting time detectionGenerates reports to compare the efficiency of different queuing-ups and display the changing status of one queueSupports raw data export for further analysis.Supports real-time data uploading and scheduled data uploadingRegional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to thresholdWaiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Kelių eismo ir transporto priemonių aptikimasChannel 1,Blocklist and allowlist: up to 10,000 recordsSupport license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)License plate recognition rate ≥98%
- Funkcijos
- Basic Event Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),video quality diagnosis,vibration detection
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,white light flashing,audible warning
- Išmaniosios funkcijosScene change detection,audio exception detection,defocus detection
- Bendrieji duomenys
- Rasos šalinimasYes
- MatmenysØ140 mm × 410.1 mm (Ø5.5" × 16.1")
- Pagrindinės funkcijosHeartbeat,one-key reset,mirror,password protection,flash log,anti-banding
- ŠildytuvasWith -H: Yes
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- MedžiagaAluminum alloy body
- Pakuotės dydis462 mm × 197 mm × 195 mm (18.2" × 7.76" × 7.68")
- EnergijaThree-core terminal block,12 VDC ± 20%, 1.82A, max. 21.8 W,24 VAC ± 20%, 1.4 A, max. 21.6 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.56 A to 0.42 A, max. 23.7 W
- Darbo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Sandėliavimo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- SvorisApprox. 2620 g (5.78 lb.)
- Svoris su įpakavimuApprox. 3260 g (7.19 lb.)
- Apšvietimas
- IR bangos ilgis750 nm
- Išmanus papildomas apšvietimasYes
- Papildomo apšvietimo diapazonasChannel 1: up to 100 m,Channel 2: up to 30 m
- Papildomo apšviešimo tipasHybrid (IR and White Light)
- Nuotrauka
- Diena/Naktis režimasChannel 1: Day, Night, Day (DarkfighterX), Auto (DarkfighterX), Schedule (DarkfighterX), Full Time Color,Channel 2: Day, Night, Auto, Scheduled-Switch, Triggered by Alarm input
- Nuotraukų pagražinimasChannel 1: BLC, HLC, 3D DNR, Defog, EIS,Channel 2: BLC, HLC, 3D DNR, Defog
- Nuotraukos parametrų keitiklisYes
- Vaizdo nustatymaiSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
- Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Privatumo kaukė8 programmable polygon privacy masks
- Wide Dynamic Range (WDR)140 dB
- Sąsaja
- Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- Garsas1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- Įmontuotas mikrofonas 2 built-in microphones
- Įmontuotas garsiakalbis 1 built-in speaker
- Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Galia12 VDC, max. 50 mA
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Perkrovimo mygtukasYes
- Vaizdo išvestis1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
- Wiegand1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)
- Objektyvas
- DiafragmaChannel 1: F1.6,Channel 2: F1.0
- Focal Length & FOV Channel 1: 15 to 45 mm : horizontal FOV 28.1° to 9.5°, vertical FOV:15.7° to 5.3°, diagonal FOV 32.4° to 10.9° ,Channel 2: 4 mm: horizontal FOV: 89.2°, vertical FOV: 45.5°, diagonal FOV: 108.2°
- FokusavimasChannel 1: semi-auto
- Rainelės tipasChannel 1: P-iris,Channel 2: Fixed
- Tinklas
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- KlientasiVMS-4200,Hik-Connect
- Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, SRTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
- Tiesioginis vaizdo žiūrėjimasUp to 20 channels
- Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
- NaršyklėPlug-in required live view: IE 10, IE11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Vaizdas
- Bitų dažnio valdymasCBR,VBR
- Penktasis srautasChannel 1: 50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)Channel 2:50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
- Ketvirtas srautasChannel 1:50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)Channel 2:50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Pagrindinis srautasChannel 1: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)Channel 2: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Region of Interest (ROI) 4 fixed regions for each stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Antrinis srautasChannel 1: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) Channel 2: 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
- Tikslinis apkarpymasYes
- Trečias srautasChannel 1: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Channel 2: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Vaizdo bitų dažnis32 Kbps to 8 Mbps
- Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG
