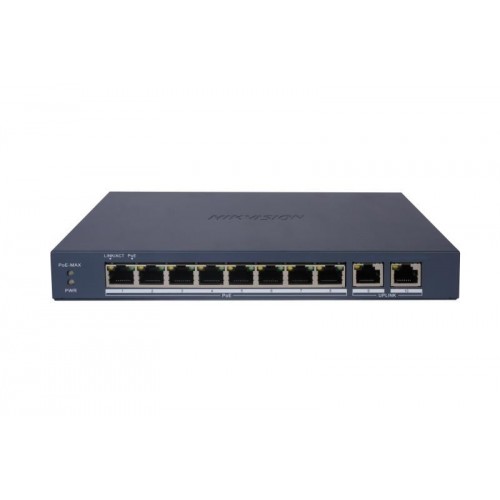

10 prievadų, 8 PoE komutatorius Hikvision DS-3E1510P-EI/M(B)
Naujiena
10 prievadų, 8 PoE komutatorius Hikvision DS-3E1510P-EI/M(B)
Kaina:
Be PVM76.63€
Su PVM: 92.72€
- Sandėlyje: Yra
- Prekės kodas: SWITCHDS3E1510PEIMB
- Patvirtinimai
- Cheminių komponentų sertifikavimasReach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU)
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- SaugumasCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Bendrieji duomenys
- Dydis217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
- Bendras svoris1.08 kg (2.38 lb)
- Installation ModeDesk-Mounted,Wall-Mounted
- Maks. energijos suvartojimas86 W
- Grynas svoris0.54 kg (1.19 lb)
- Darbo drėgnumas5% to 95% (no condensation)
- Darbo temperatūra0 °C to 40 °C (32 °F to 104 °F)
- Energijos sunaudojimas miego režime2.5 W
- Energijos šaltinis54VDC, 1.6A
- Santykinė drėgmė5% to 95% (no condensation)
- RėmasMetal material
- Laikymo temperatūra-40 °C to 85 °C (-40 °F to 185 °F)
- Apsauga nuo viršįtampio6 KV
- Tinklo parametrai
- Vidinė cache atmintis1.5 Mbits
- MAC adresų lentelė4 K
- Paketų persiuntimo greitis14.88 Mpps
- Jungtys8 × Gigabit PoE port,2 × Gigabit RJ45 port
- Perjungimo talpa20 Gbps
- PoE
- Maks. PoE prievadų galia30 W
- PoE prievadasPoE: Ports 1 to 8
- PoE galios biudžetas80 W
- PoE galios jungtisEnd-span: 1/2(-), 3/6(+)
- PoE standartasIEEE 802.3af,IEEE 802.3at
- Programinės įrangos funkcijos
- HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
- Ryšių sujungimasLink aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 3 aggregation groups.
- Ilgo diapazono režimasPorts 1 to 8: up to 300 m.Long range performance may vary depend on camera model or cable condition.
- Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP.
- PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
- Prievado izoliacijaPorts 1 to 8: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- System MaintenanceSupport device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support management via Hik-Central Pro.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating.
- VLANVLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 32 VLAN.
