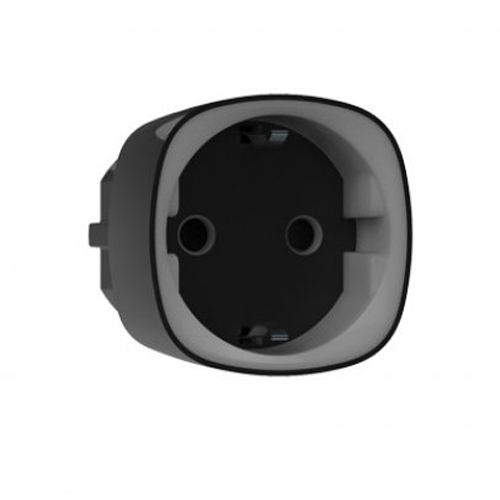

Socket Black

Classification Radio channel relay unit
Device type Wireless
Installation method In power outlet
Compatibility Operates only with Hub, Hub Plus, Hub 2 and ReX
Actuating element Electromagnetic relay
Voltage and type of external power supply 110 - 230 V, 50/60 Hz
Voltage protection for 230 V mains Yes, 184 - 253 V
Relay service life 200,000 switch-ons
Maximum load current 11 A (continuous), 13 A (up to 5 s)
Maximum current protection Yes, 11 A if the protection is turned on, up to 13 A if the protection is turned off
Maximum temperature protection Yes, +85°С. The socket turns off automatically if the temperature is exceeded
Electric shock protection class Class I (with grounding terminal)
Electric power meter feature Available
Energy consumption parameter check Current, voltage, power consumption
Alarm signal delivery time 0.15 s
Load indicator Available
Output power (resistive load at 230 V) Up to 2.5 kW
Average energy consumption of the device on standby
Less than 1 W
Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Operating frequencies — 868.0 - 868.6 MHz
Self-adjusting RF output power — up to 25 mW
Block encryption based on AES algorithm
Detector scanning period — 12 - 300 s

Operating temperature range 0°С to +40°С
Permissible humidity Up to 75%
Protection class of body IP20
Anti-sabotage Protection against fraud
Jamming detection
Remote setting and testing +
Dimensions 65.5 × 45 × 45 mm
Weight 58 g
Warranty Replacement and repair within 24 months of the date of sale.
