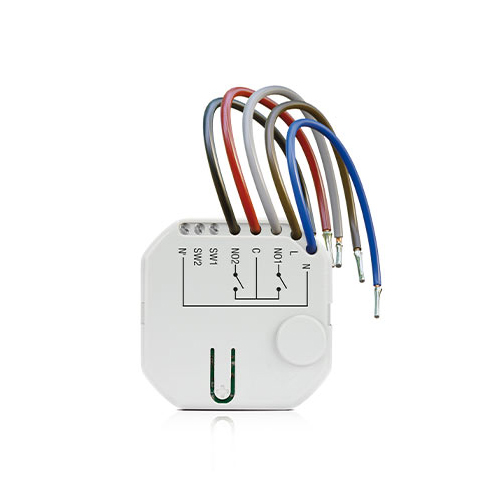

ASW-210 Wireless two-channel 230 V AC in-wall controller

The ASW-210 module is designed to remotely switch on/off devices powered from 230 V AC mains. It operates as part of the ABAX 2/ABAX two-way wireless system.

The controller has compact dimensions and is designed for in-wall mounting.

The device is provided with two control inputs designed to connect e.g. wall switches (mono- and bistable).

Configuration and updating of firmware is carried out remotely. Radio communication in the ABAX 2 system is AES encrypted.

remotely switching on/off 230 V AC devices
2 control inputs
compatible with:
ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 radio signal repeater
ABAX system controllers (ACU-120, ACU-270, ACU-250 or ACU-100 (version 4.04 or higher)), INTEGRA 128-WRL system control panel and ARU-100 radio signal repeater - the required version of the device firmware should be checked in its description on the website, while ASW-210 must be in version 1.01 or higher (firmware available in ABAX 2 Firmware for ACU220 / ACU-280 from version 6.02)
range of radio communication in the open area:
in ABAX 2: up to 1000 m (with ACU-220 or ACU-280)
in ABAX: up to 500 m
remote configuration and firmware update
compact dimensions
in-wall mounting
SATEL
