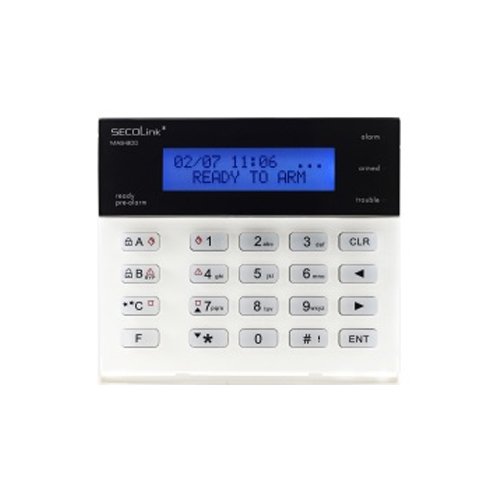

KM20B, Security system LCD keyboard (SECOLINK)

Product Type: Security system LCD keyboard
Hard-wired zone number plate: 2
PGM output number plate: No
Environmentally-temperature measurement: No
Display Type: LCD, 2 lines 16 characters
The number of buttons on the keyboard: 20
High Speed Number of function keys (F-keys): 32
Data bus protocol: KRBus
Sensor loop connection types: NC, NO, NC / EOL, NO / EOL, NC / DEOL, NO / DEOL
Maximum connection cable between the control panel and the panel's distance: 300m
Power supply: 9-14 V DC
Voltage measurement on the keyboard: yes
Current consumption: 100 mA with illumination, without lighting <50 ma
Speaker Type: Buzzer
Light color = blue screen, keyboard = yellow
Character set: Latin, Russian, Greek, Eastern Europe, Western Europe, Azerbaijan, Turkey, Scandinavian.
User Interface Type: Advanced, simplified, Baltic, Asian.
PXA Dimensions: 115 mm x 95 mm
Product compliance with environmental standards: ROHS
Operating temperature: -10 C to + 50 C
Control panel settings programming interface: USB
