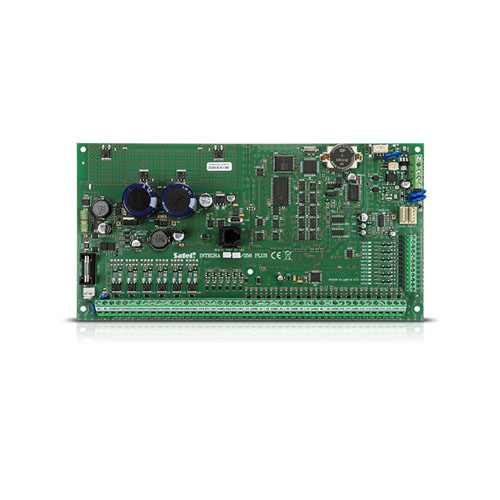

INTEGRA 64 Plus, Control panel Grade 3

Installer-defined text messaged; 64
Extender circuits: up to 64
Environmental class according to EN50130-5: II
Voice messages: 16
Communication buses: 1+2
Maximum number of programmable inputs; 64
Maximum number of programmable outputs: 64
Maximum humidity: 93±3%
Maximum current consumption from the battery: 200 mA
Maximum current consumption from the 230V network: 400 mA
Maximum battery charging current: 1500 mA
Keypads: up to 8
Weight: 320 g
Battery cut-off voltage (±10%): 10,5 V
Power supply output voltage: 10,5…14 V DC
Supply voltage (±15%): 20 V AC, 50-60 Hz
Battery failure voltage threshold (±10%): 11 V
Telephone numbers for notification (voice/PAGER + SMS): 16+16
Carrying capacity of the +EX1 and +EX2 outputs (±10%): 3000 mA
Low current programmable outputs rating: 50 mA
High current programmable outputs rating: 3000 mA
Carrying capacity of the +KPD output (±10%): 3000 mA
Event log: 5631
Objects: 8
Current consumption from the 230V network in standby: 135 mA
Current consumption from battery - standby: 130 mA
Security grade according to EN 50131: Grade 3
Partitions: 32
Timers: 64
Users + Administrators: 192 + 8
Programmable wired inputs: 16
Power supply current efficiency (supplying devices + charging batteries): 2000 + 1500 mA
Programmable wired outputs: 16
Supplying outputs: 3
Board dimensions: 264 x 134 mm
Operating temperature range: -10…+55 °C
Recommended transformer type: 75 VA
