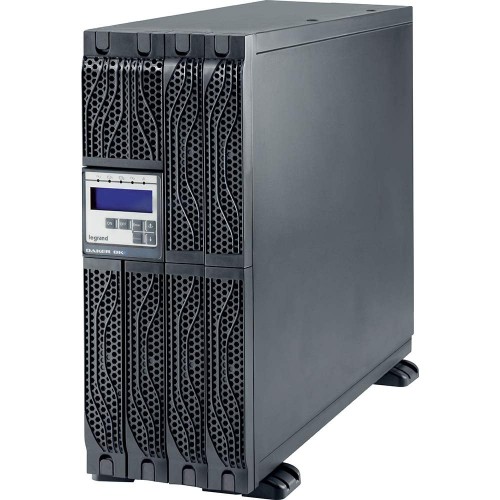

LEGRAND UPS DAKER DK PLUS 310174 (Rack/Tower, LCD, 6000VA/6000W)
LEGRAND UPS DAKER DK PLUS 310174 (Rack/Tower, LCD, 6000VA/6000W)
Kaina:
Be PVM2,338.55€
Su PVM : 2,829.64€
- Sandėlyje: Yra
- Prekės kodas: L310174
- Bendrieji duomenys
- Nominal power (VA)6000
- Active power (W)6000
- TechnologijaOn-Line Double Conversion VFI-SS-111
- Bangos formaSinusoidal
- UPS architectureConvertible tower and rack 19"
- Surge Rating1900
- ECO Mode efficiency98%
- Įvesties įtampa230 V
- Įvesties dažnis50-60 Hz ±5% Autosensing
- Įėjimo įtampos diapazonas170V - 288V on full load
- THD Input current< 3%
- Input power factor> 0.99
- Išėjimo įtampa230V ± 1%
- Output frequency (nominal)50/60 Hz (settable from LCD panel) ± 0.1%
- Crest Factor1:3
- THD Output voltageLinear load 2%, Nonlinear load 5%
- Output Voltage Tolerance±1%
- Uptime ExpansionNo
- Baterijų skaičius20
- Battery series Type/Voltage12V 5Ah
- Uptime with 80% load (min)4
- Display and SignalsFour buttons and four LEDs to monitor UPS status in real time
- Ryšio prievadaiRS232 serial ports, USB
- Remote ManagementAvailable
- Network interface slotSNMP
- Measurements H x L x D (mm)440 x 176 (4U) x 680
- Battery Cabinet Measurements H x L x D (mm)440 x 132 (3U) x 680
- Svoris (kg)60
- Operating temperature (°C)0 ÷ 40 °C
- Degree of protectionIP20
- Relative humidity (%)0-95% non-condensing
- Noise level at 1 m (dBA)< 50
- Heat Loss (BTU/h)1300
- SertifikataiEN 62040-1, EN 62040-2, EN 62040-3
