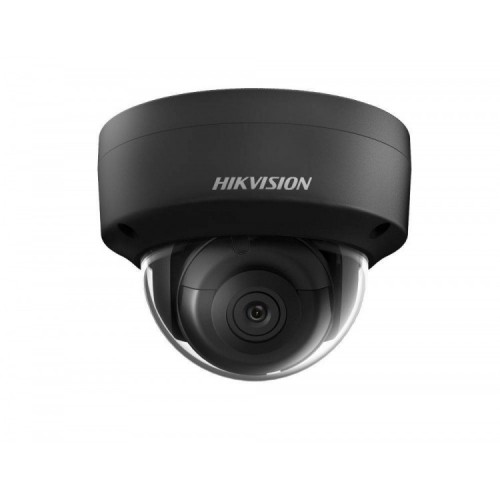

Hikvision IP camera DS-2CD2145FWD-I F2.8 (black)

Hikvision IP camera DS-2CD2145FWD-I F2.8 (black)
Hikvision IP camera DS-2CD2145FWD-I F2.8 (black)
Be PVM
124.55€
Su PVM: 150.71€
  • Stock: In Stock
  • Model: DS-2CD2145FWD-I F2.8

Technical specifications:

Image Sensor:

1/2.5\" Progressive Scan CMOS

Signal System:

PAL/NTSC

Min. Illumination:

Color: 0.009 lux @(F1.2, AGC ON), 0.016 lux @(F1.6, AGC ON), 0 lux with IR

Shutter time:

1/3 s to 1/100,000 s

Slow shutter:

Support

Lens:

2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°

Lens Mount:

M12

Adjustment Range:

Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

120 dB

Digital noise reduction:

3D DNR

Video bit rate:

32Kbps~16Mbps

Video Compression:

H.265+/H.265/H.264+/H.264/MJPEG

Triple Streams:

Yes

Max. Image Resolution:

2560 × 1440

Frame Rate:

50Hz: 25 fps (2560 × 1440, 2304 × 1296, 1920 × 1080)

60Hz: 30 fps (2560 × 1440, 2304 × 1296, 1920 × 1080)

Sub Stream:

50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:

50Hz: 25fps (1280 ×720, 640 × 360,  352 × 288)

60Hz: 30fps (1280 ×720, 640 × 360,  352 × 240)

Image Enhancement:

BLC/3D DNR

Image Settings:

Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser

Target Cropping:

No

Day/Night Switch:

Day/Night/Auto/Schedule/Triggered by alarm in (-S model)

Protocols:

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function:

One-key reset, Anti-Flicker, heartbeat, mirror,  password protection, privacy mask, Watermark,  IP address filtering

System Compatibility:

ONVIF (Profile S, Profile G),  PSIA, CGI, ISAPI

Communication Interface:

1 RJ45 10M/100M self-adaptive Ethernet port

On-board storage:

Built-in Micro SD/SDHC/SDXC slot,  up to 128 GB

Operating Conditions:

-30 °C ~ 60 °C (-22 °F ~ 140 °F),  Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 25%, Φ 5.5 mm coaxial plug power PoE(802.3af, class 3)

Power Consumption:

12 VDC, 0.5 A, max. 5.5 W PoE (802.3af, 36V to 57V),

0.2 A to 0.1 A, max. 7 W

Weather Proof:

IP67

Impact Protection:

IK10

IR Range:

Up to 30m

Dimensions:

Camera: Φ 111 × 82.4 mm  (Φ 4.4″ × 3.2″)

Package: 134 × 134 × 108 mm  (5.27″ × 5.27″ × 4.25″)

Weight:

500 g (1.1 lb.)
