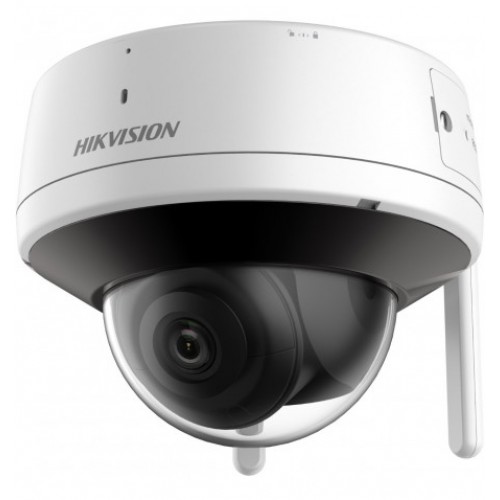

Hikvision DS-2CV2146G0-IDW F2.8 IP kamera

Hikvision DS-2CV2146G0-IDW F2.8 IP kamera
Hikvision DS-2CV2146G0-IDW F2.8 IP kamera
171.82€
Su PVM: 207.90€
  • Sandėlyje: Yra
  • Prekės kodas: DS-2CV2146G0-IDW F2.8

Prekės aprašymas:

  • 4 MP IP kamera
  • Acusense technologija
  • 120dB WDR
  • Wi-Fi iki 120m
  • H.265+
  • 4mm
  • IR iki 30m
  • IP66
  • IK10

Techninė specifikacija:

Kamera
Sensorius1/2.7" Progressive Scan CMOS
Min. pašvietimasColor: 0.005 Lux @ (F1.6, AGC ON)
Užrakto greitis1/3 s to 1/100,000 s
Diena / naktisICR Cut
Reguliavimo kampasPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lėtas užraktasYes
P/NP/N
WDR120 dB
Objektyvas
Ojektyvas ir matymo kampas2.8 mm, horizontal FOV 101°, vertical FOV 55°, diagonal FOV 119° 4 mm, horizontal FOV 82°, vertical FOV 44°, diagonal FOV 97°
AperturaF1.6
Objektyvo tvirtinimasM12
Apertūros tipasFixed
Pašvietimas
IR atstumasUp to 30 m
Bangos ilgis850 nm
Išmanus papildomas pašvietimasYes
Video
Raiška2560 × 1440
Pagrindinis srautas50Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Antrinis srautas50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
Video suspaudimasMain Stream: H.265/H.264 Sub-Stream: H.265/H.264
Video Bit dažnis32 Kbps to 8 Mbps
H.264Baseline Profile/Main Profile/High Profile
H.265Main Profile
Audio
Aplinkos triukšmo filtravimas-S: Yes
Garso dažnis -S: 8 kHz/16 kHz
Audio suspaudimas-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit dažnis-S:
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/
8-320Kbps(MP3)
Tinklas
Vienalaikė peržiūraUp to 6 channels
APIISAPI, SDK
ProtokolaiTCP/IP, ICMP, DHCP, DNS, DDNS ,HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
VartotojaiUp to 32 users. 3 user levels: administrator, operator and user
ApsaugaPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF
Tinklinis talpinimasMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported
KlientasiVMS-4200, Hik-Connect, Hik-Central
NaršyklėPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
AliarmasMotion detection, exception
Wi-FI
Kodavimas64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Wi-Fi protokolai802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Dažnio diapazonas2.412 GHz - 2.472 GHz
Kanalų bangos ilgis20/40MHz
Moduliacija802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Wi-fi atstumasUp to 120 m (The performance varies based on actual environment)
Perdavimo greitis300 Mbps
Vaizdas
Diena / naktis perjungimasDay, Night, Auto, Schedule
Vaizdo gerinimasBLC, HLC, 3D DNR
Vaizdo nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Sąsajos
Vidinė atmintisBuilt-in micro SD slot, up to 256 GB
PerkrovimasYes
Ryšio sąsaja1 RJ45 10M/100M self-adaptive Ethernet port
Tradicinis algoritmas
Pagrindiniai įvykiaiMotion detection, video tampering alarm, exception (network disconnected, IP
address conflict, illegal login, HDD full, HDD error), scene change detection
Gylusis mokymasis
SaugojimasLine crossing detection, intrusion detection, region entrance detection, region exiting
detection
Bendriniai
Laikymo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbinės sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Maitinimas12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, class 3
Energijos sąnaudos12 VDC, 0.6 A, max. 7 W
Maitinimo sąsajaØ5.5 mm coaxial power plug
MedžiagaPolycarbonate cover, polycarbonate body
MatmenysØ126.0 × 96.1 mm (Ø5.0″ × 3.8″)
Pakuotės matmenys170 × 170 × 150 mm (7.0" × 7.0" × 5.9")
SvorisApprox. 590 g (1.3 lb.)
Svoris su pakuoteApprox. 989 g (2.2 lb.)
Apjungimo būdaiUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture,
audible warning
Kalbos33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel
counter
Programos perkrovimasYes
Patvirtinimai
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
RFFCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014); KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17); ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
