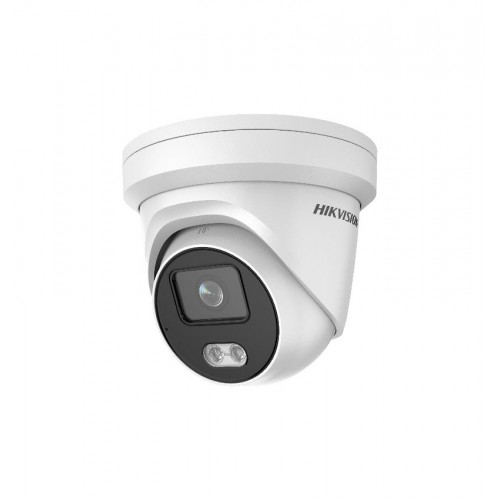

Hikvision DS-2CD2347G1-LU F2.8 IP camera

Hikvision DS-2CD2347G1-LU F2.8 IP camera
Ask
Hikvision DS-2CD2347G1-LU F2.8 IP camera
Be PVM
205.78€
Su PVM: 248.99€
  • Stock: Ask
  • Model: DS-2CD2347G1-LU F2.8
  • 4MP IP dome camera
  • ColorVu technology
  • 1 built-in microphone
  • Lens - 2.8 mm
  • Video Compression H.265+, H.264+, H.265, H.264
  • Image Sensor 1/1.8" Progressive Scan CMOS
  • Min. Illumination 0.0014 @ (F1.0, AGC ON), 0 Lux with Light
  • Warm white LEDs (3000K), up to 30m
  • Face Capture
  • Line crossing detection, intrusion detection, objectremoval detection, unattended baggage detection
  • On-board Storage up to 128 GB
  • Operating Conditions -30 °C to +60°C

Technical specifications:

Image Sensor1/1.8" Progressive Scan CMOS
Min. Illumination0.0014 @(F1.0, AGC ON), 0Lux with Light
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Focal length2.8 mm
FocusFixed
ApertureF1.0
FOVHorizontal FOV: 109°, vertical FOV: 55°, diagonal FOV: 138°
Lens MountM16
Day &NightDay/Night
DNR3D DNR
Wide Dynamic Range120dB
3-Axis AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Video CompressionMain stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream:H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Main stream supports
H.265 TypeMain Profile
H.265+Main stream supports
Video Bit Rate32 Kbps to 16 Mbps
Max. Resolution2688× 1520
Main Stream50Hz: 25fps (2688× 1520, 2560× 1440, 2304× 1296, 1920 × 1080, 1280×720)
60Hz: 30fps (2688× 1520, 2560× 1440, 2304× 1296, 1920 × 1080, 1280×720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz:25fps(1280×720, 640 × 360, 352×288)
60Hz:30fps(1280×720, 640 × 360, 352×240)
Image EnhancementBLC/3D DNR/HLC
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
ROI (Region of Interest)Support 1 fixed region for main stream and sub-streamseparately
Day/Night SwitchDay/Night
Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm TriggerMotion detection, video tampering detection,network disconnected, IP address conflict,illegal login, HDD full, HDD error
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware VersionV5.5.82
APIONVIF (PROFILE S, PROFILE G), ISAPI
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users
3 levels: Administrator, Operator and User
ClientiVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
Audio interface1 audio input (built-in mic),mono sound
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset ButtonYes
Face CaptureYes
Behavior AnalysisLine crossing detection, intrusion detection, objectremoval detection, unattended baggage detection
Exception DetectionScene change detection
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3at, class 3)
Power Consumption12 VDC, 0.5A, max: 6W
PoE: (802.3af, 36V to 57 V), 0.3 A to 0.1 A, max: 7.5W
White Light RangeWarm white LEDs (3000K), up to 30m
Protection LevelIP66
MaterialMetal except for trim ring
DimensionsCamera: Φ138.3×125.2mm (Φ5.4"×4.9")
With package: 170 ×170 ×150 mm (7" ×7" ×5.9")
WeightCamera: 575g (1.3lb.)
With package: 833g (1.8lb.)
