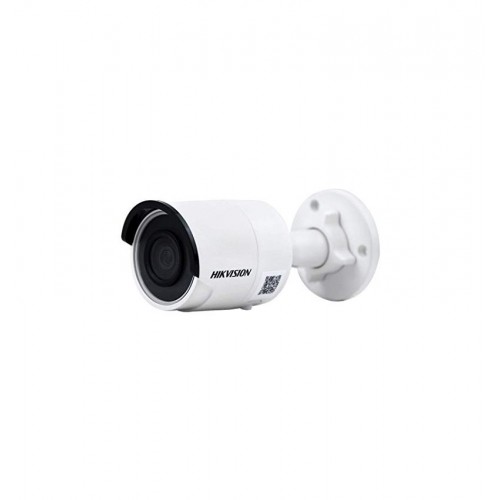

Hikvision DS-2CD2035FWD-I F2.8 IP Camera

Hikvision DS-2CD2035FWD-I F2.8 IP  Camera
Ask
Hikvision DS-2CD2035FWD-I F2.8 IP Camera
Be PVM
152.89€
Su PVM: 185.00€
  • Stock: Ask
  • Model: DS-2CD2035FWD-I F2.8

Technical specifications:

Image Sensor

1/2.8\" Progressive Scan CMOS

Signal System:

PAL/NTSC

Min. Illumination:

Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR

Shutter time:

1/3 s to 1/100,000 s

Slow shutter:

Support

Lens:

2.8 mm, horizontal field of view: 98°

Lens Mount:

M12

Adjustment Range:

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

120 dB

Digital noise reduction:

3D DNR

Video bit rate:

32Kbps~16Mbps

Video Compression:

H.265+/H.265/H.264+/H.264/MJPEG

Triple Streams:

Yes

Max. Image Resolution:

2048×1536

Frame Rate:

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)

Sub Stream:

50Hz: 25fps (640 × 360, 352 × 288)

60Hz: 30fps (640 × 360, 352 × 240)

Third Stream:

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement:

BLC/3D DNR

Image Settings:

Rotate Mode, Saturation, Brightness, Contrast,  Sharpness adjustable by client software or web browser

Target Cropping:

Support

ROI:

Support 1 fixed region for each stream, and face dynamic tracking

Day/Night Switch:

Auto/Scheduled

Protocols:

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP,  DNS, DDNS, RTP, RTSP,  RTCP, PPPoE, NTP,  UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

System Compatibility:

ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

General Function:

One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering

Communication Interface:

1 RJ45 10M / 100M Ethernet interface

On-board storage:

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Behavior Analysis:

Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection

Operating Conditions:

-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption:

12 VDC ± 25%, 5.5W
PoE(802.3af, class 3), 7W

Weather Proof:

IP67

IR Range:

Up to 30m

Dimensions:

Camera: Φ70 × 155.03 mm (Φ2.76″ × 6.1″)
Package: 216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″)

Weight:

410 g (0.9 lb.)
